GmbPrep Duet

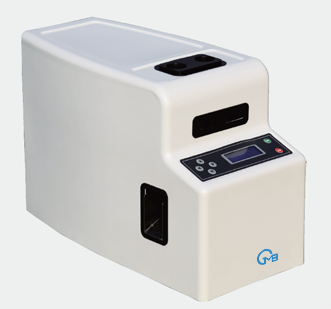

• Semi-Auto Cell Processor

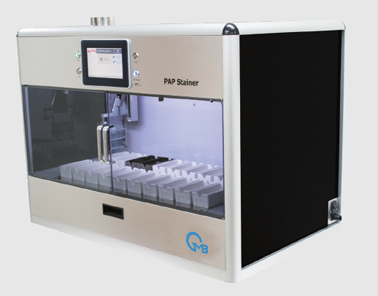

• Slide Stainer

General Features

• Throughput up to 220 samples per hour
• Application: GYN and Non-GYN samples
• Adjustable 7 Smear Parameters capable to provide optimal smear quality
• All parameters for Gyn, Body Fluid, Urine, FNA, Sputum, etc. can be saved separately
• Very Simple Preparation, Very Convenient & Clean Operation

General Specifications

PAP Smear Processing

Preservative Solution

•

  GYN

•

  Non-GYN

  Body Fluids
  Sputum Urine
  FNA

•

  Transportation Media

  Thyroid

•

  Mucolysis

•

  Hemolysis

Membrane Filter & Coated Slide & Brush

•

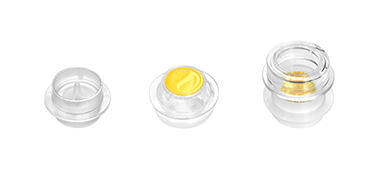

  Membrane Filter Kit

•

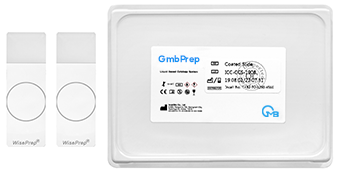

  Coated Slide

•

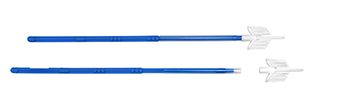

  Cervical Brush

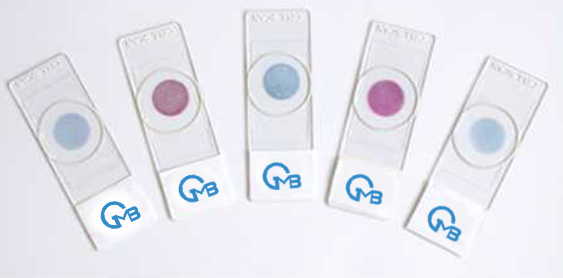

Smear Characteristics

• Thin Smear
• Evenly Distributed Cells
• Evenly Distributed normal Morphologic Cells in whole area
• Very few RBC Remnant
• Very few Necrotic Materials Remnant

Smearing
Reproducibility

• Reproducibility Test for 3 Cell Line group
• Make 10 samples for each cell line, make 3 slides for each samples, take 5 images for each slide, and counts of negative cells
• Maximum Reproducibility : 90.2%

Sample	HeLa Test	SiHa Test	SNU905 Test
Cell line
Slide Image
Average Cell counts	10.36	29.34	12.43
Min Reproducibility	71.66%	70.77%	72.57%
Max Reproducibility	90.20%	87.66%	87.78%

Morphology
GYN

Morphology
Non-GYN
